Lamination Lines

No matter the width, RCL has the lamination line for the project. At RCL's lamination and decorative films facility in Trenton, North Carolina, cutting edge technology maximizes our lamination lines' capabilities. The lines serve a variety of markets:

  • 1 - 24" Lamination line for engraving material - Gauge Range: .060" to .300"
  • 2 - 36"-48" Lamination line for Marine, RV, and POP - Gauge Range: .060" to .300"
  • 1 - 32" Lamination roll-line for thin gauge applications - Gauge Range: .017" to .060"
  • 1 - 60" State-of-the-art lamination line, featuring dual lamination stations.
    Gauge Range: .017" to .300"
60in_laminator

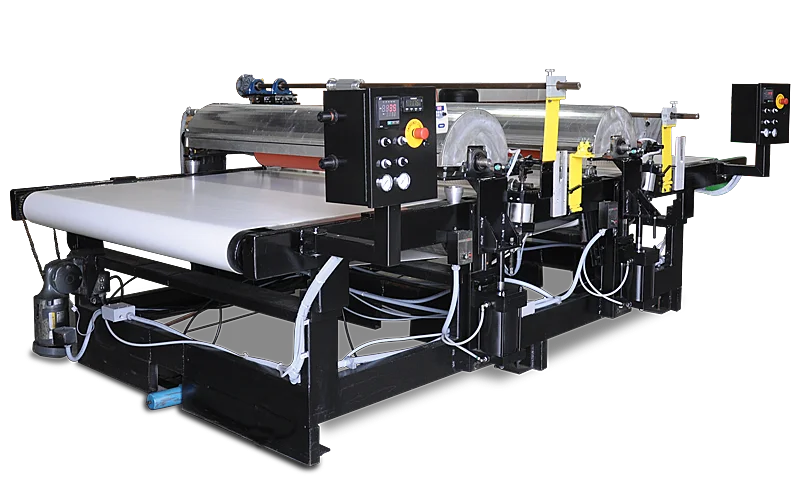

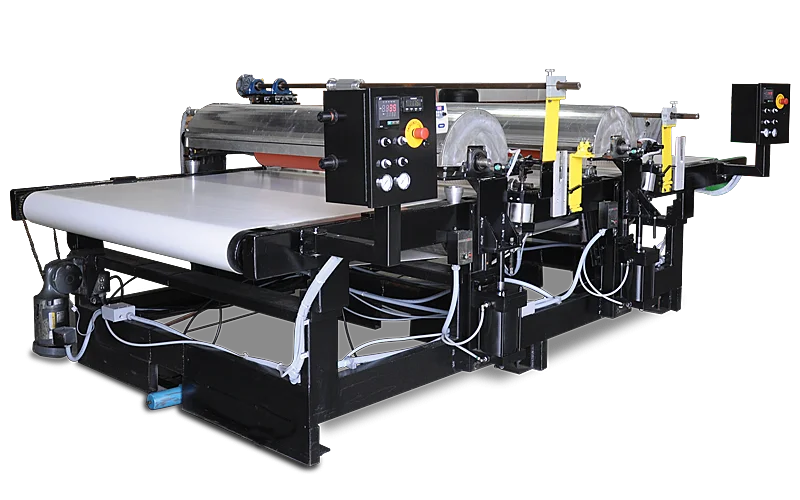

60" State-of-the-art Lamination Line

Rowmark Custom Laminiations' 60" sheet-fed laminator is 120" long and 72" wide. It has the capacity to laminate sheets up to 60" in width.

The line was custom built and tailors to a specialized segment of the market, increasing laminated sheet options for customers. A double head lamination line, the machine features dual lamination stations; one upstream and one downstream. This allows for the application of two foils on one run. It also includes a winding system for finished roll stock and dual roller/belt speed controls, as well as advanced digital temperature displays and air pressure sensors for tight pressure control.
